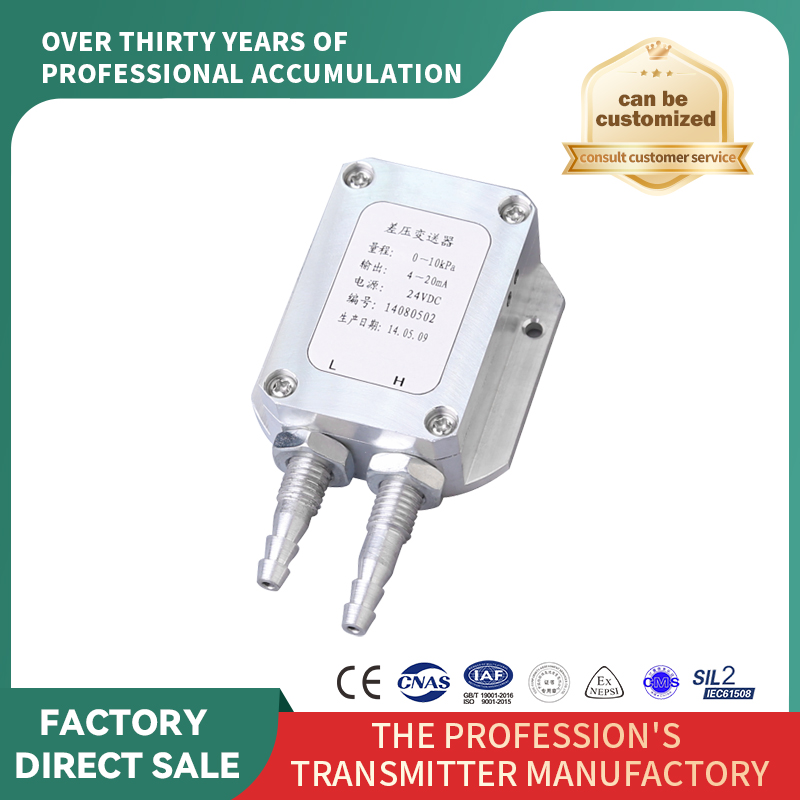

Name: Pressure Transmitter para sa Wind Gas(PB3030-3)
Uploaded: 2026-05-13T01:30:06+08:00
Description: Paglalarawan ng Produkto Ang presyon ng hangin (micro differential pressure) transmitter, gamit ang na-import na

$53≥5Piece/Pieces

Min. Order:	5 Piece/Pieces
Transportasyon:	Ocean,Land,Air,Express
Port:	ningbo

Makipag-ugnay sa Ngayon

Paglalarawan ng Produkto

Mga katangian ng produkto

Pagbalot at Paghahatid

Paglalarawan ng Produkto

Mga katangian ng produkto

Model No.: PB3030

Model NO.: PB3030-1-2

Measuring Medium: Steam,Gas,Liquid

Accuracy Grade: 0.5%F.S

Pressure Range: -10~200kpa

IP Rating: Ip67

Certification: ISO

Customized: Customized

Power Supply: 15~36VDC

Output: 4~20mA (Power Supply, Output 2-Wire System)

Response Time: ≤10ms

Operating Temperature: -20 ~ 85 ° C

Transport Package: Carton Packing

Specification: PCS

Trademark: HUANGONG

Origin: China

Kapasidad ng Produksyon: 120000 Pieces / Year

Customization: Available

Type: Differential Pressure Transmitter

Structure Type: Monosilicon Pressure Transmitter

Halaga ng pagpapadala: Contact the supplier about freight and estimated delivery time.

Pagbalot at Paghahatid

Pagbebenta ng Mga Yunit	:	Piece/Pieces
Uri ng lagayan	:	Pag-iimpake ng karton

The file is encrypted. Please fill in the following information to continue accessing it

Pressure Transmitter para sa Wind Gas(PB3030-3)



Paglalarawan ng Produkto

Ang presyon ng hangin (micro differential pressure) transmitter, gamit ang na-import na high-precision, high-stability, temperature-compensated, linearly compensated micro-pressure core, sa pamamagitan ng signal amplification, V / I conversion, power reverse protection, pressure overload current limiting at iba pang signal processing, ay magiging napakaliit na differential pressure, wind pressure at iba pang mga parameter ay mapagkakatiwalaan na converted signal A4 ~20m output signal.
Ang PB3030 series wind pressure (micro differential pressure) transmitter ay may mga pakinabang ng reverse polarity protection, enclosure protection level ng IP65, mababang presyo, magandang performance at iba pa.
Ang PB3030 series na wind pressure (micro differential pressure) transmitter ay malawakang ginagamit sa mga boiler, dust collectors, vacuum cleaner, petrolyo, kemikal, HVAC, ginto, parmasyutiko, tela, power plant, air duct pressure o differential pressure/negatibong pagsukat ng presyon, ang proseso ng produksyon ay napakaliit na hindi kinakaing unti-unti, awtomatikong pagsukat ng presyon, at iba pa upang makontrol ang proseso ng hangin.

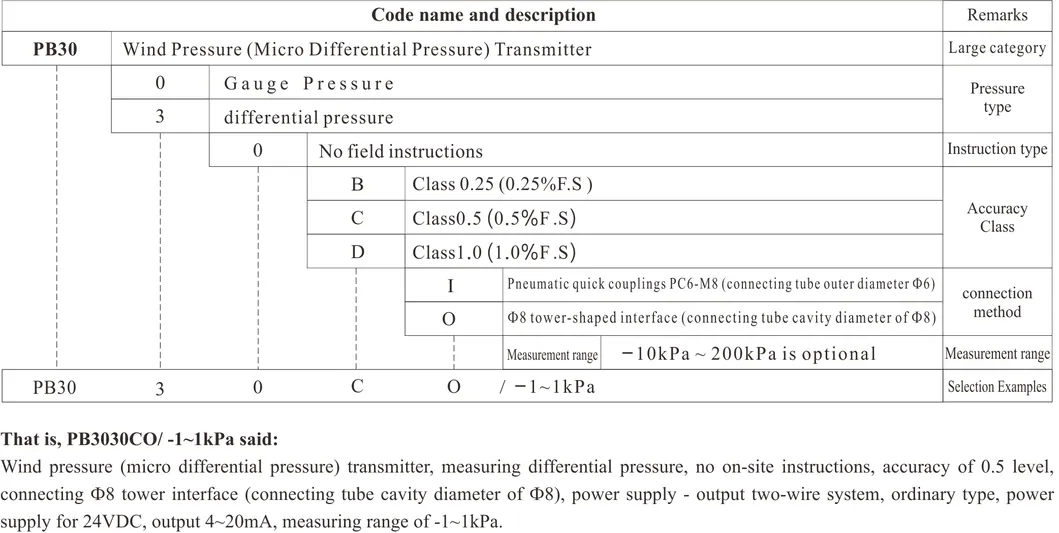

Teknikal na Parameter

Range	-10kPa~200kPa (min. 1kPa; max. 200kPa)
Accuracy	0.5 grade
Power supply	15~36VDC
Output	4~20mA (power supply, output 2-wire system)
With load resistance capacity	0~600Ω (for 24VDC, 4~20mA two-wire system)
Overload capacity	200%F-S
Interface	Ф8 tower interface (connecting tube cavity diameter of Ф8) or pneumatic quick-connect coupler PC6-M8 (connecting tube outer diameter of Ф6)
Response time	≤10mS
Protection grade	IP65
Medium	Non-conductive non-corrosive or weakly corrosive gas
Adjustment	zero and range external fine-tuning
Pressure measurement form	positive pressure / negative pressure / differential pressure
Operating temperature	-20 ~ 85 ° C
Temperature of measured medium	-20~85ºC
Housing	Die-casting aluminum alloy
Stability	<0.5%F-S/year

Mga Tampok ng Produkto

Proteksyon ng reverse polarity
Klase ng proteksyon ng enclosure IP65
Mababang presyo at mahusay na pagganap
