Yuyao Huangong automation instruments factory
$53≥5Piece/Pieces
| Min. Order: | 5 Piece/Pieces |
| Transportasyon: | Ocean,Land,Air,Express |
| Port: | ningbo |
Share:

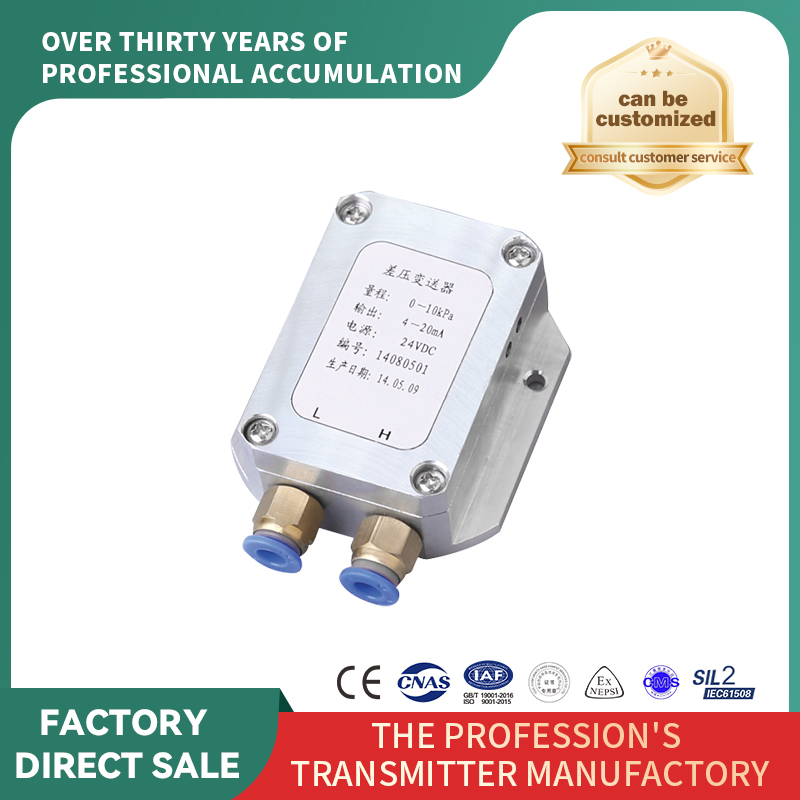

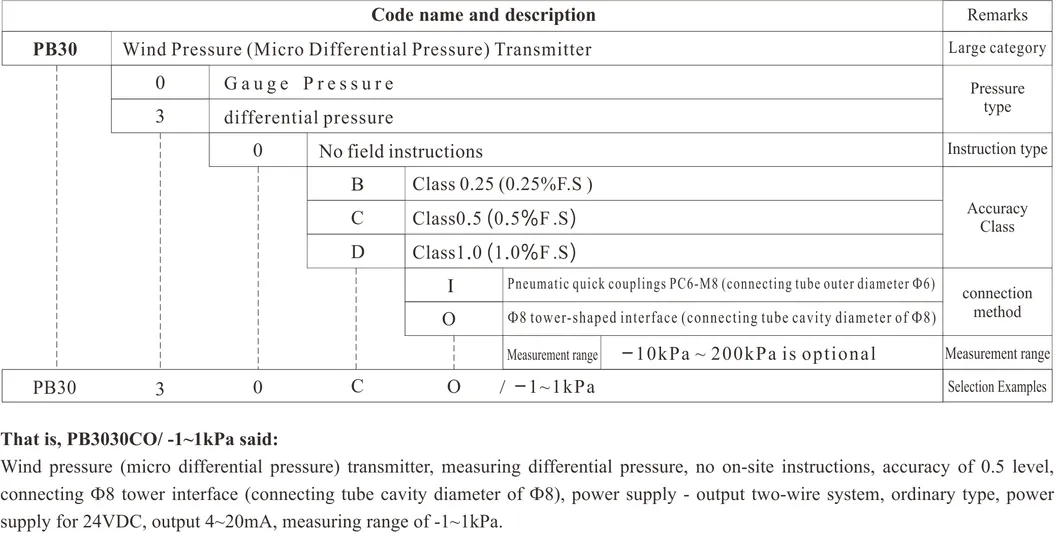

Model No.: PB3030
Model NO.: PB3030-1
Measuring Medium: Steam,Gas,Liquid
Accuracy Grade: 0.5%F.S
Pressure Range: -10~200kpa
IP Rating: Ip67
Certification: ISO
Customized: Customized
Power Supply: 15~36VDC
Output: 4~20mA (Power Supply, Output 2-Wire System)
Response Time: ≤10ms
Protection Grade: Ip65
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Origin: China
Kapasidad ng Produksyon: 120000 Pieces / Year
Customization: Available
Type: Differential Pressure Transmitter
Structure Type: Monosilicon Pressure Transmitter
Halaga ng pagpapadala: Contact the supplier about freight and estimated delivery time.
| Pagbebenta ng Mga Yunit | : | Piece/Pieces |
| Uri ng lagayan | : | Pag-iimpake ng karton |
The file is encrypted. Please fill in the following information to continue accessing it
| Range | -10kPa~200kPa (min. 1kPa; max. 200kPa) |
| Accuracy | 0.5 grade |
| Power supply | 15~36VDC |
| Output | 4~20mA (power supply, output 2-wire system) |
| With load resistance capacity | 0~600Ω (for 24VDC, 4~20mA two-wire system) |
| Overload capacity | 200%F-S |
| Interface | Ф8 tower interface (connecting tube cavity diameter of Ф8) or pneumatic quick-connect coupler PC6-M8 (connecting tube outer diameter of Ф6) |
| Response time | ≤10mS |
| Protection grade | IP65 |
| Medium | Non-conductive non-corrosive or weakly corrosive gas |
| Adjustment | zero and range external fine-tuning |
| Pressure measurement form | positive pressure / negative pressure / differential pressure |
| Operating temperature | -20 ~ 85 ° C |
| Temperature of measured medium | -20~85ºC |
| Housing | Die-casting aluminum alloy |
| Stability | <0.5%F-S/year |
