Name: PT1000 Temperature Controller Device（HGWZ-R-2）
Uploaded: 2026-04-13T01:25:53+08:00
Description: Paglalarawan ng Produkto Ang HGWZ/R series integrated temperature transmitter module ay isang field installation

$11≥5Piece/Pieces

Min. Order:	5 Piece/Pieces
Transportasyon:	Ocean,Land,Air
Port:	ningbo

Makipag-ugnay sa Ngayon

Paglalarawan ng Produkto

Mga katangian ng produkto

Pagbalot at Paghahatid

Paglalarawan ng Produkto

Mga katangian ng produkto

Model No.: HGWZ/R

Model NO.: HGWZ/R-006

Display Type: Lcd

Accuracy: 0.25%F.S. 0.5%F.S.

IP Rating: Ip55

Certification: CE/ISO/Sil

Customized: Customized

Power Supply: 12 to 36VDC

Ambient Temp: -25ºC~85ºC

Output: 4~20mA

Transport Package: Carton Packing

Specification: PCS

Trademark: HUANGONG

Origin: China

Kapasidad ng Produksyon: 120000 Pieces / Year

Customization: Available

Type: Wall-Mounted Current Type

Measuring Medium: Temperature

Halaga ng pagpapadala: Contact the supplier about freight and estimated delivery time.

Power Consume: <0.5W (24VDC)

Pagbalot at Paghahatid

Pagbebenta ng Mga Yunit	:	Piece/Pieces
Uri ng lagayan	:	Pag-iimpake ng karton

The file is encrypted. Please fill in the following information to continue accessing it

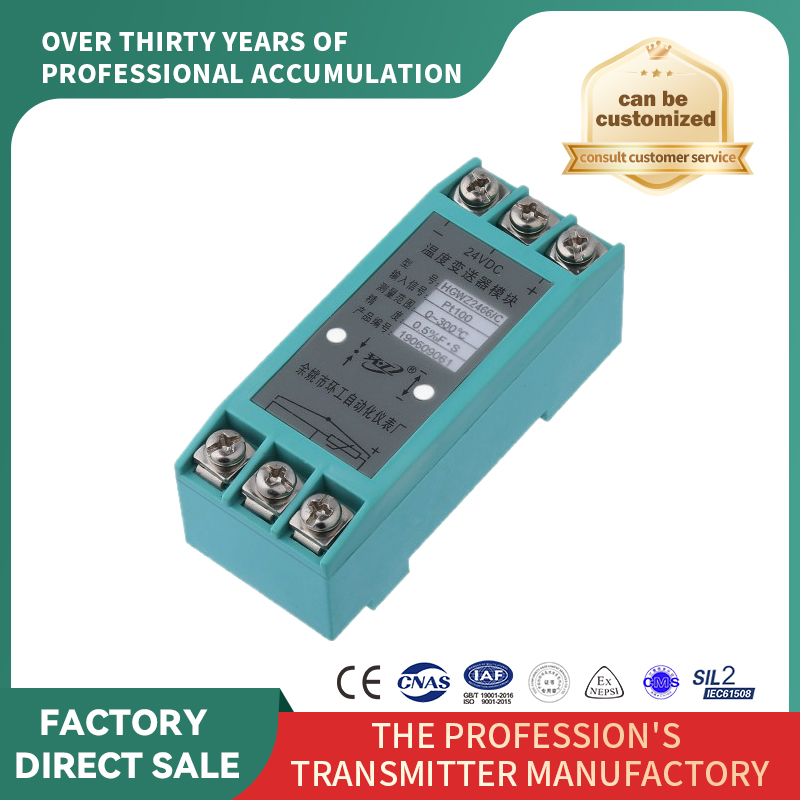

PT1000 Temperature Controller Device（HGWZ-R-2）



Paglalarawan ng Produkto

Ang HGWZ/R series integrated temperature transmitter module ay isang field installation temperature transmission unit. Gumagamit ito ng two-wire transmission mode (ang power input at signal output ay dalawang karaniwang wire), at naglalabas ng 4 ~ 20mA current na linear na may sinusukat na temperatura.
Maaaring i-install ang module ng transmitter sa junction box ng thermocouple at RTD upang bumuo ng pinagsamang istraktura kasama nito, o maaari itong i-install nang hiwalay sa panel ng instrumento bilang isang yunit ng conversion.
Ang HGWZ/R series ay gumagamit ng karaniwang integrated circuit chip, na ginagawang mas mura ang produkto sa ilalim ng premise ng kalidad ng kasiguruhan at angkop para sa mass demand.

Teknikal na Parameter

Accuracy	±0.1%F·S ±0.2%F·S ±0.5%F·S
Output	4…20mA
Stability	±0.5%F·S for 1 year
Load resistance	0…600Ω
Power supply	12 to 36VDC
Ambient temp	-25ºC…85ºC
Storage temp	-45ºC…125ºC
Response time	≤10mS
Power consume	<0.5W (24VDC)
Input	RTD/TC/mV

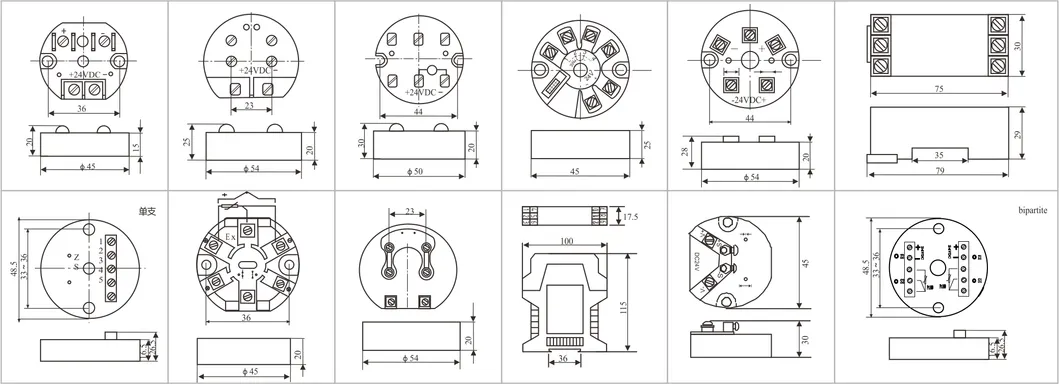

RTD	Pt100 Pt500,Pt1000,2-,3- wires 2xPt100,2xPt500,2xPt1000,2-,3- wires (such as pic7 ) TC:K,J,T,E,M,S,B,R
Internal cold junction for TC
The range can be customized
Galvanic isolation	1500VAC(optional) (such as pic10)

Mga Tampok ng Produkto

Mataas na katumpakan, mataas na pagganap at cost-effective
Advanced na nonlinear correction circuit, drift self-calibration circuit
Natatanging anti-interference circuit, high-precision cold-end compensation circuit
Kaagnasan paglaban, shock paglaban, mahusay na pagiging maaasahan
Maliit na sukat, maaaring direktang mai-install sa RTD, thermocouple
Maliit na sukat, maaaring direktang i-mount sa junction box ng RTD, thermocouple o direktang i-mount sa rail ng instrument box.

Mga profile
