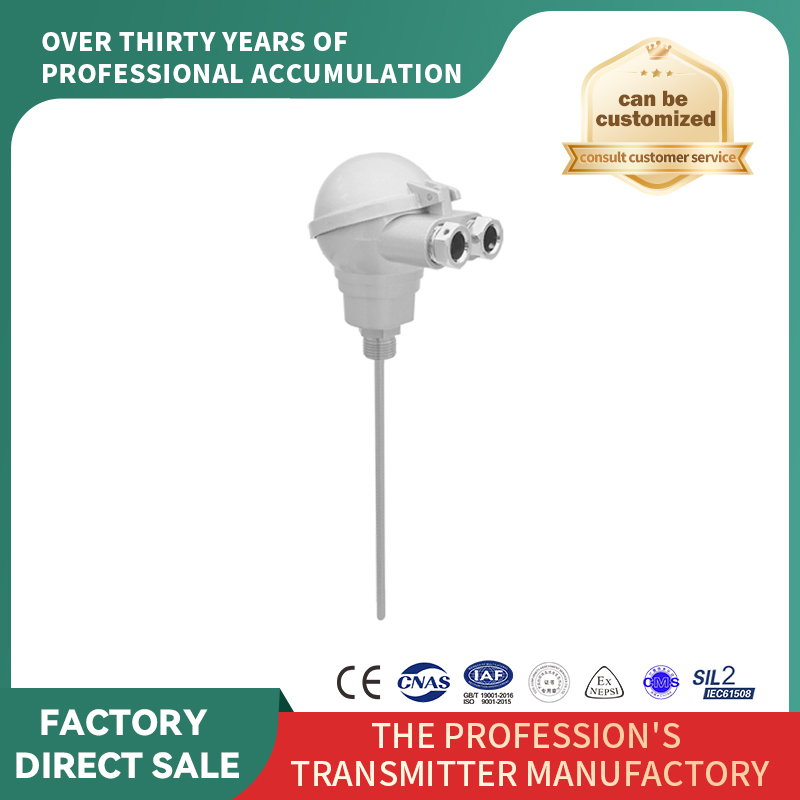

High Precision Remote Heat Transfer Resistance Sensor

High Precision Remote Heat Transfer Resistance Sensor

$11≥5Piece/Pieces

Min. Order:	5 Piece/Pieces
Transportasyon:	Ocean,Land,Air,Express
Port:	ningbo

Makipag-ugnay sa Ngayon

Paglalarawan ng Produkto

Mga katangian ng produkto

Pagbalot at Paghahatid

Paglalarawan ng Produkto

Mga katangian ng produkto

Model No.: WZ/R

Model NO.: WZ/R-0335

Makipag-ugnay sa: Contact

Output Signal Type: Analog Type

Production Process: Integration

Material: 304/316

Measuring Medium: Temperature

IP Rating: Ip55

Certification: CE/ISO/Sil

Customized: Customized

Circuit Type: 2-, 3-, 4-Wire

Measuring Range: -200~650℃

Anti-Hazard Classification: Exd Iict6

Logarithmic Thermoresistance: Single-Tube Type / Double-Tube Type (Not Applicabl

Characteristic: Suitable for High Pressure, High Temperature and W

Transport Package: Carton Packing

Specification: PCS

Trademark: HUANGONG

Origin: China

Kapasidad ng Produksyon: 120000 Pieces / Year

Customization: Available

Installation Type: Whorl of Fingerprint

Sensing Type: Resistive

Halaga ng pagpapadala: Contact the supplier about freight and estimated delivery time.

Pagbalot at Paghahatid

Pagbebenta ng Mga Yunit	:	Piece/Pieces
Uri ng lagayan	:	Pag-iimpake ng karton

The file is encrypted. Please fill in the following information to continue accessing it

Industrial Temperature Control System（WZR-8）



Paglalarawan ng Produkto

Teknikal na Parameter

Thermal resistance species	Copper heat resistance platinum thermal heat resistance
Process connection	Screw or flange connection
Junction box	Water proof connector flameproof terminal box or etc
Diameter	Copper heat resistance:121mm or customized platinum thermal resistance:161mm or 12*1mm or customized
Circuit type	2-, 3-, 4-wire
Tolerance class	A,B,C
Sensor	Pt10, Pt100, Pt50, Pt500, Pt1000, Cu50,Cu100
Protecting tube material	304,316 stainless steel or etc
Insert depth	Optional
Sensor	K,N,E,J,T,S,R,B,W3,W5
Process connection	Screw or flange
Junction box	Water proof connector flameproof terminal box or etc
Tolerance class	I, II,P
Length	Optional
Protecting tube material	304, 316 stainless steel or etc
Insert depth	Optional

Mga Tampok ng Produkto

Mga imported na thin-film na bahagi, mas kaunting oras ng pagtugon sa thermal, bawasan ang dynamic na error, magnesium oxide filling probe rod, shock resistance, mahusay na thermal conductivity, mahabang buhay ng serbisyo
Pambansang pamantayan 304, 316, materyal ng PTFE, malayang pagpili, upang matugunan ang iba't ibang pagsukat ng media, mga nakapirming mga thread, movable ferrule, suporta ng flange na koneksyon sa hindi karaniwang pag-customize
Mula sa teoretikal na pag-input ng data hanggang sa aktwal na pagtuklas ng temperatura ng langis, pagtulad sa iba't ibang mga temperatura ng media sa field, 48 oras ng pag-record ng data, upang matiyak na ang bawat transmiter ng temperatura ay tumpak at maaasahan~

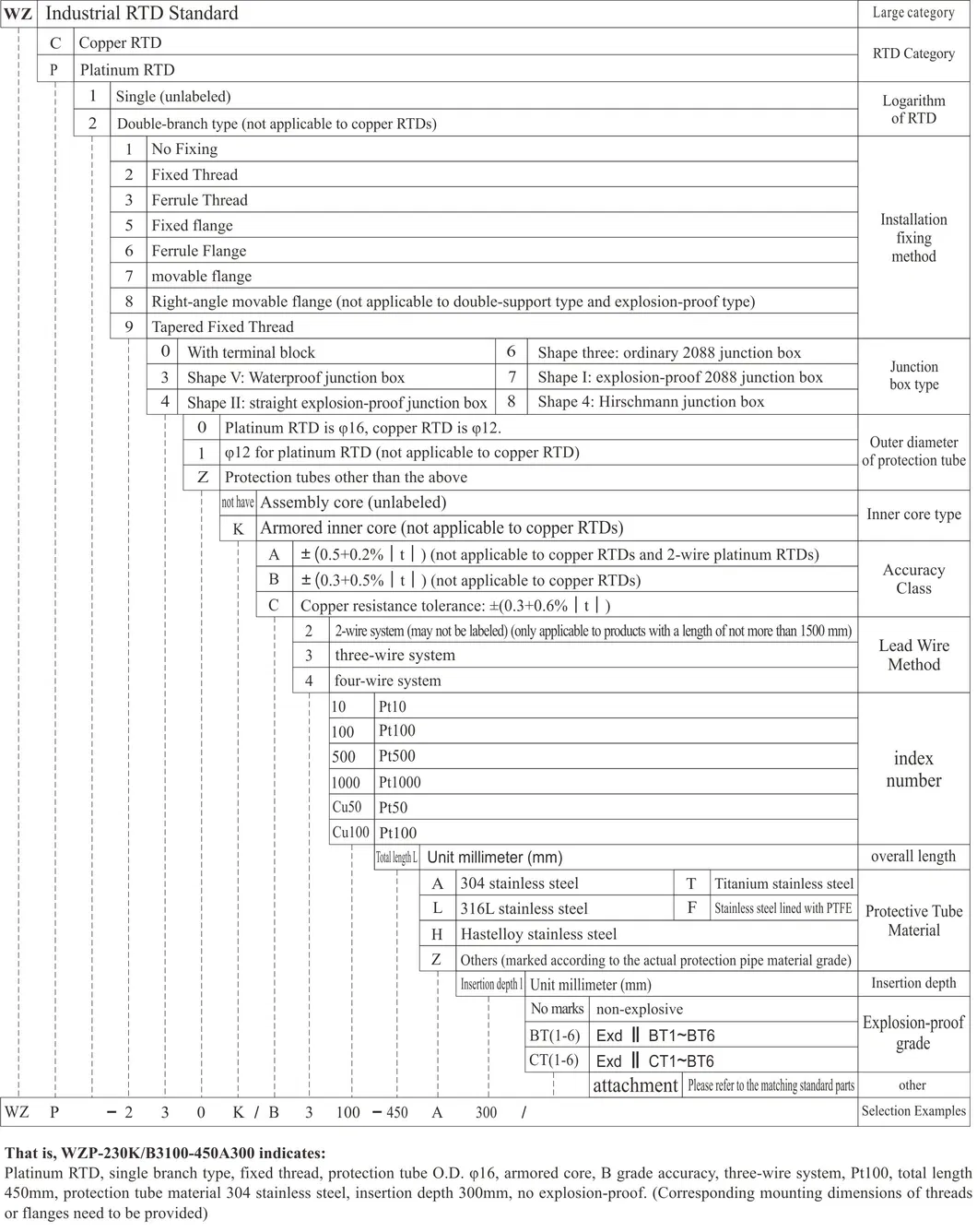

Gabay sa Pagpili

High-Precision Remote Heat Transfer Resistance Sensor; Dual-Integrated Temperature Transmitter
