Yuyao Huangong automation instruments factory
$303≥5Piece/Pieces
| Min. Order: | 5 Piece/Pieces |
| Transportasyon: | Ocean,Land,Air,Express |
| Port: | ningbo |
Share:
Model No.: SDPB
Model NO.: PB8100-0012
Measuring Medium: Steam,Gas,Liquid
Accuracy Grade: 0.25%F.S 0.5%F.S
Pressure Range: -0.1~40MPa
IP Rating: Ip67
Certification: CE/ISO/Sil
Customized: Customized
Response Time: ≤10ms
Power Supply: 12~36vdc
Output: 4~20mA (or 1~5V)
Protection: Ip65
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Origin: China
Kapasidad ng Produksyon: 120000 Pieces / Year
Customization: Available

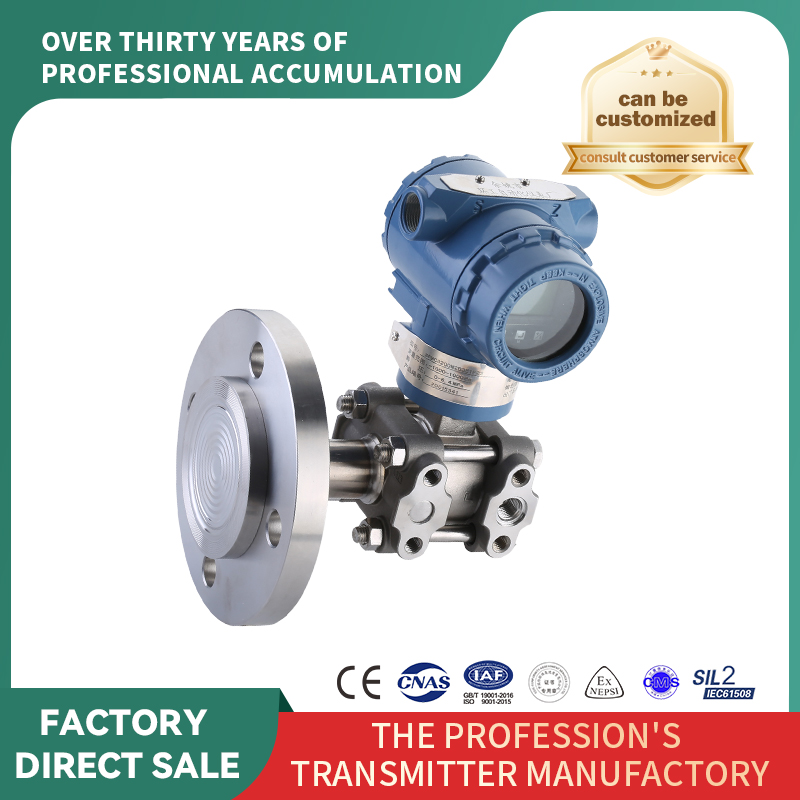

Type: Medium & High Temperature Pressure Transmitter
Structure Type: Diffused Silicon Pressure Transmitter
Halaga ng pagpapadala: Contact the supplier about freight and estimated delivery time.
| Pagbebenta ng Mga Yunit | : | Piece/Pieces |
| Uri ng lagayan | : | Pag-iimpake ng karton |
The file is encrypted. Please fill in the following information to continue accessing it
| Measuring range | 500Pa-40MPa |
| Output signal | 4-20mA, 4~20mA/HART, customer |
| Reference accuracy | ±0.075% URL, optional ±0.05% URL |
| Media temperature | -40-120ºC |
| Measuring medium | Liquid, gas, or steam flow as well as liquid level, density and pressure |
| Output | 4~20mA two wire, 4~20mA+HART two wire |
| Power supply | 12-45VDC |
| Diaphragm material | SUS316L, Hastelloy C |
| Process connection | M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F) |
| Protection class | IP67 |
