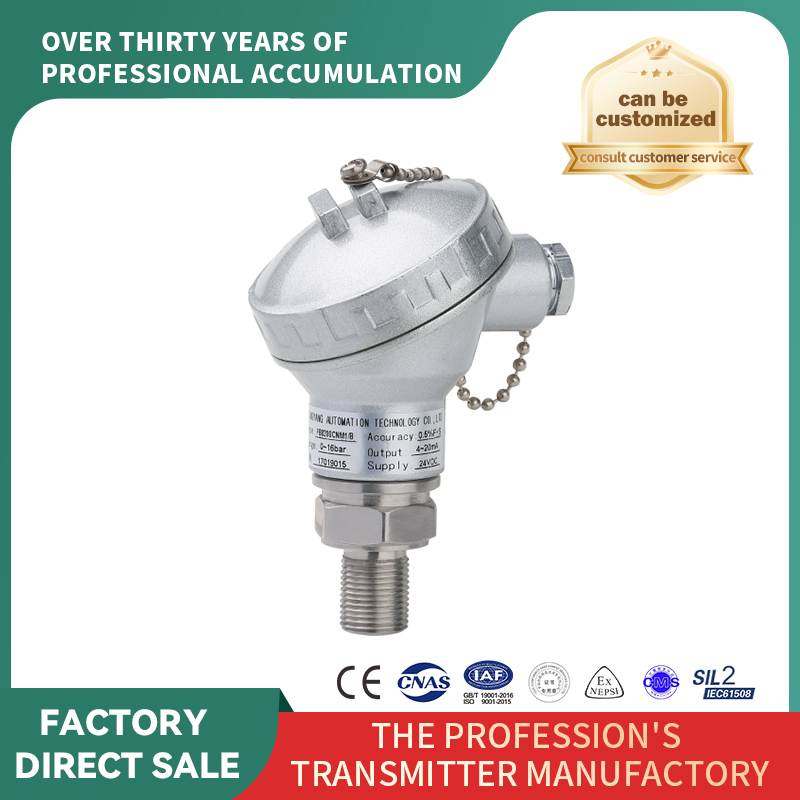

Name: High accuracy industrial pressure sensor（PB8200-1）
Uploaded: 2026-04-20T06:55:39+08:00
Description: Paglalarawan ng Produkto PB8200 series high-precision diffusion silicon pressure transmitter gamit ang

$27≥5Piece/Pieces

Min. Order:	5 Piece/Pieces
Transportasyon:	Ocean,Land,Air,Express
Port:	ningbo

Makipag-ugnay sa Ngayon

Paglalarawan ng Produkto

Mga katangian ng produkto

Pagbalot at Paghahatid

Paglalarawan ng Produkto

Mga katangian ng produkto

Model No.: PB8200

IModel NO.: PB8200

Measuring Medium: Steam, Gas, Liquid

Accuracy Grade: 0.2%F·S or 0.5%F·S

Pressure Range: -0.1~60MPa

IP Rating: Ip65

Certification: CE.ISO

Ambient Temp: -20~85ºC

Output: 4~20mADC

Power Supply: 12~36VDC

Response Time: ≤10ms

Transport Package: Carton Packing

Specification: PCS

Trademark: HUANGONG

Origin: China

Kapasidad ng Produksyon: 120000 Pieces / Year

Customization: Available

Type: Remote Pressure Transmitter

Structure Type: Diffused Silicon Pressure Transmitter

Gastos Sa Pagpapadala: Makipag-ugnayan sa supplier tungkol sa kargamento at tinantyang oras ng paghahatid

Pagbalot at Paghahatid

Pagbebenta ng Mga Yunit	:	Piece/Pieces
Uri ng lagayan	:	Pag-iimpake ng karton

The file is encrypted. Please fill in the following information to continue accessing it

High accuracy industrial pressure sensor（PB8200-1）



Paglalarawan ng Produkto

PB8200 series high-precision diffusion silicon pressure transmitter gamit ang high-precision, mataas na katatagan at mataas na pagiging maaasahan ng diffusion silicon pressure sensing element at na-import na mataas na kalidad na integrated circuits, ay isang mataas na katumpakan, maaasahan at matatag, mahabang buhay ng serbisyo ng pang-industriya na pressure transmitter, na ginagamit upang masukat ang presyon ng mga likido o gas at iba't ibang antas ng presyon ng patlang at likido at likidong antas. instrumento sa pagsukat ng presyon at antas. Ang PB8200 series pressure transmitter, dahil sa mahusay na pagganap nito, ay maaaring palitan ang na-import na high-grade pressure transmitter, na ginagamit para sa pagsukat o pagsukat at kontrol ng mga kinakailangan ng mataas na katumpakan ng okasyon, ay maaaring magkaroon ng mga katangian ng pagsabog-patunay, mahusay na epekto pagtutol.

Teknikal na Parameter

Accuracy	0.2%F·S or 0.5%F·S
Linearity	-0.1-60Mpa Optional, the minimum range is 0-10kpa
measurement range	0.5%F·S
Temperature drift	＜±0.75%F·S (0~50℃)
Long-term stability	≤02.5F.S/ year
Esponse time	≤10mS
Power supply	12~36VDC
Qutput	4~20mA、1~5V、0~5V、0~10V
Load Resistance	0-60Ω (for 24VDC, 4-20mA two-wire system)
proof pressure	1.5 times the maximum rated pressure
Output	4…20mADC
Compensated Temperature	-20-85℃ (up to 300℃ or more with buffered heat pipes)
Storage temperature	-45~+125℃
Ambient Temp	-20…85ºC

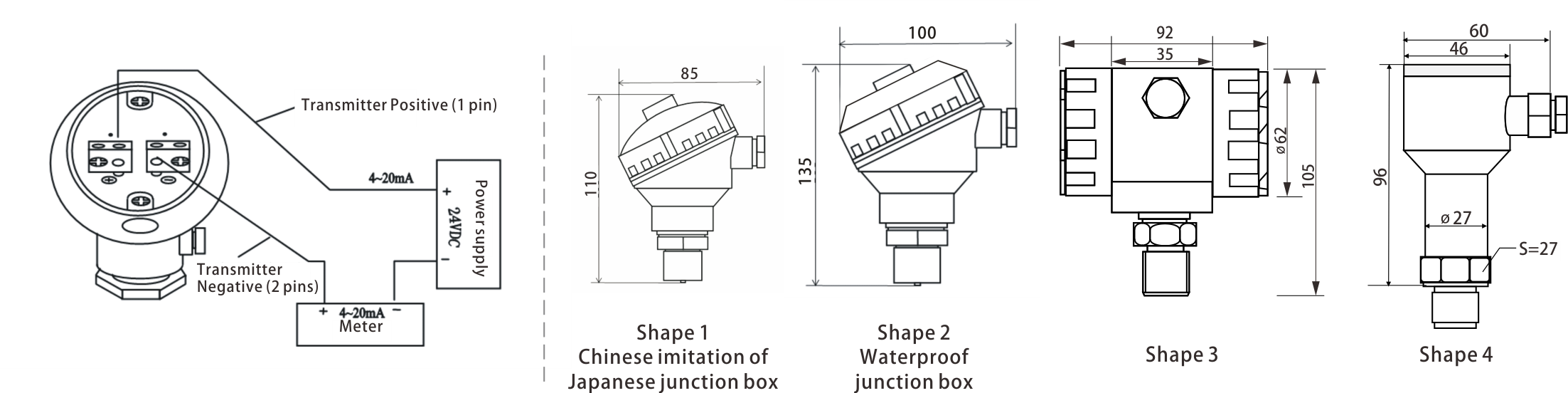

Pressure connection	Thread, flange, clamp can be customized
Mounting position	Unlimited
Protection	IP65
Wetted parts	304 or 316L stainless steel
Isolation diaphragm materia	316L stainless steel (or Hastelloy C)
Power cosumption	< 0.5W(when the power supply is 24VDC
