Yuyao Huangong automation instruments factory
$50≥5Piece/Pieces
| Min. Order: | 5 Piece/Pieces |
| Transportasyon: | Ocean,Land,Air,Express |
| Port: | Nningbo |
Share:

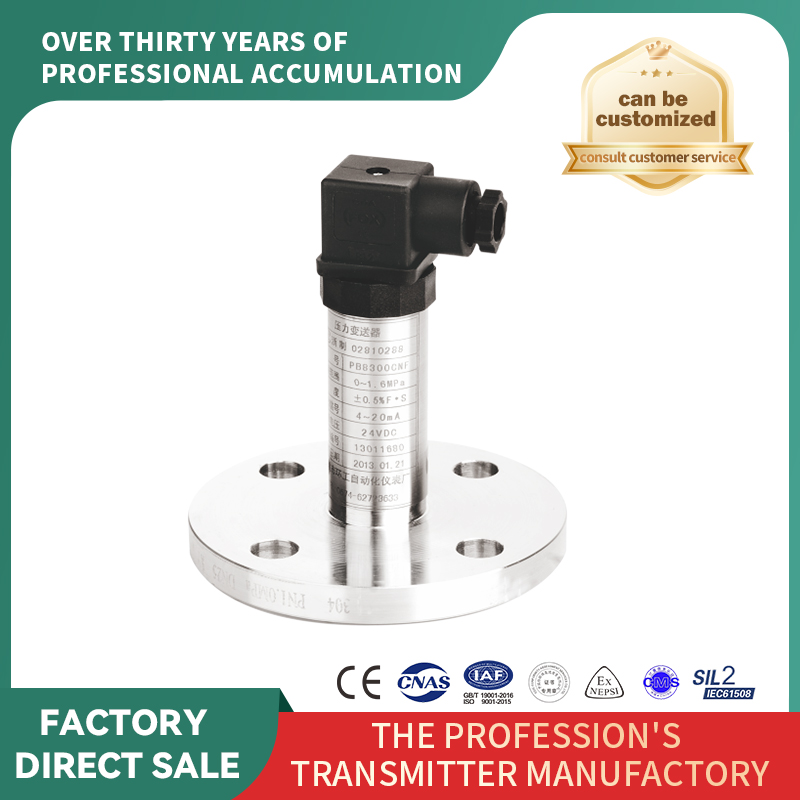

Model No.: PB8300
Model No.: PB8300-10
Measuring Medium: Steam, Gas, Liquid
Accuracy Grade: 0.1%F.S.0.2%F.S.0.5%F.S
Pressure Range: -0.1~60MPa
IP Rating: IP65
Certification: CE.ISO
Response Time: ≤10ms
Power Supply: 24VDC or (12VDC~36VDC Optional)
Output: 4~20mADC
Ambient Temp: -20~85ºC
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Origin: China
Kapasidad ng Produksyon: 120000 Pieces / Year
Customization: Available
Type: Remote Pressure Transmitter
Structure Type: Diffused Silicon Pressure Transmitter
Gastos Sa Pagpapadala: Makipag-ugnayan sa supplier tungkol sa kargamento at tinantyang oras ng paghahatid
| Pagbebenta ng Mga Yunit | : | Piece/Pieces |
| Uri ng lagayan | : | Pag-iimpake ng karton |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | 0.25%F·S , 0.5%F·S |
| Measuring range | -0.1…0bar to -1…0bar 0…0.1bar to 0…600bar to -1…25bar relative 0…1bar to 0…35bar absolute |
| Linearity | Superior to 0.25%F·S |
| Stability | superior to 0.25%F·S |
| Temperature drift | superior to ±0.75%F·S (0…50ºC) |
| Response time | ≤10mS |
| Power supply | 24VDC or (12VDC…36VDC optional) |
| Output | 4…20mA (or 1…5V) |
| Load resistance | 0~600Ω |
| Proof pressure | 150%F·S |
| Ambient temp | -20…85ºC |
| Compensated temp | -20…85ºC |
| Storage temp | -45…125ºC |
| Process connection | M20*1.5male or 1/2 NPT male,Flange or clamp or customized |
| Electric connection | DIN43650-A/ISO standard junction box |
| Wetted parts | 304 stainless steel |
| Diaphragm Material | 316L stainless steel |
| Housing Material | 304 stainless steel or 316 stainless steel |
| Power Consume | <0.5W (24VDC) |
